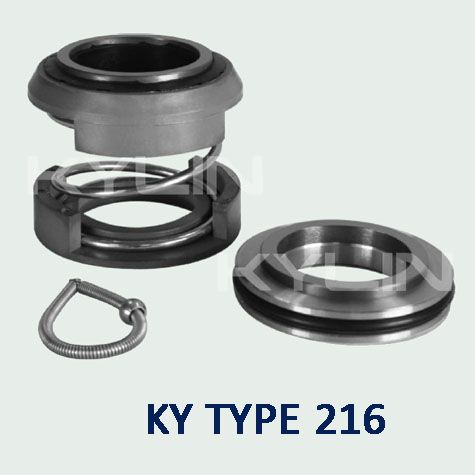

KY TYPE 216, Elastomer Bellow Shaft Seals

Combined Materials:
Stationary Ring (SiC/SSiC/TC)
Rotary Ring (SiC/SSiC/TC)
Secondary Seal (NBR/EPDM/Viton)
Spring and Retainer (Steel and plastic or Cast Aluminum Alloy).

Working Conditions:
Mediums: Water, oil, and weakly-corrosive mediums.
Temperature: -20°C~200°C
Pressure: ≤0.5MPa
Speed: ≤ 5 m/Sec

Preview the KY TYPE 216 PDF File

Download KY TYPE KY216, Elastomer Bellow Shaft Seals.pdf

If you have any questions, please send us an EMAIL about your technical applications.

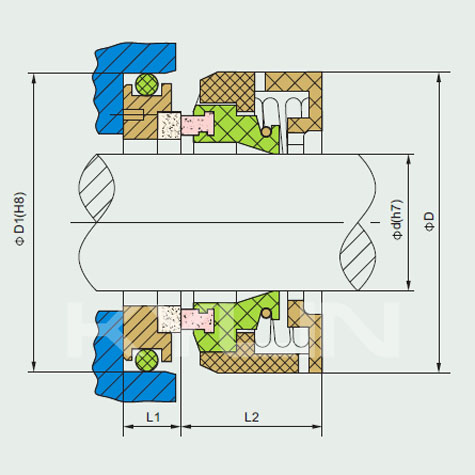

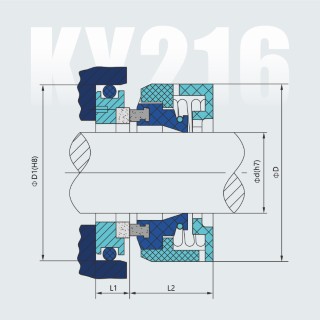

Part Numbers	d	D	D1	L1	L2
KY TYPE 216-20	20	42.5	55.5	11	25.7
KY TYPE 216-22	22	47	45.5	9	23.8
KY TYPE 216-25	25	54	50.5	10	28.8
KY TYPE 216-28	28	54	50.5	10	28.8
KY TYPE 216-30	30	54	50.5	10	28.8
KY TYPE 216-35	35	62	60.5	11	29
