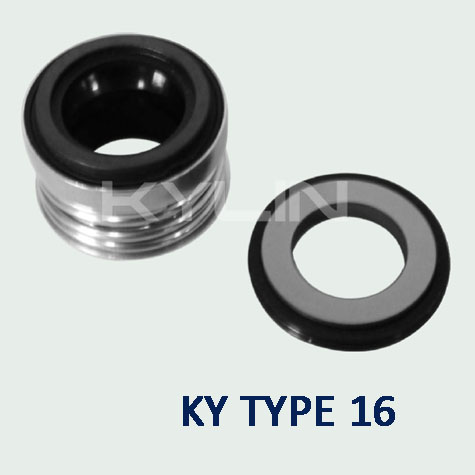

KY TYPE 16, PAC-SEAL TYPE 16, John Crane TYPE 6, US SEAL TYPE A, SEALOL TYPE 6, Elastomer Bellow Shaft Seals

Combined Materials:
Stationary Ring (Alumina 99%/Alumina 99.5%/SiC/SSiC/TC)
Rotary Ring (Carbon/SiC/SSiC/TC)
Secondary Seal (NBR/EPDM/Viton)
Spring and Punched Parts (SS304/SS316)

Working Conditions:
Mediums: Water, oil and weakly-corrosive mediums.
Temperature: -20°C~200°C
Pressure: ≤0.6MPa
Speed: ≤ 10 m/Sec

Preview the KY TYPE 16 PDF File

Download KY TYPE 16, PAC-SEAL TYPE 16, John Crane TYPE 6, US SEAL TYPE A, SEALOL TYPE 6, Elastomer Bellow Shaft Seals.pdf

If you have any questions, please send us an EMAIL about your technical applications.

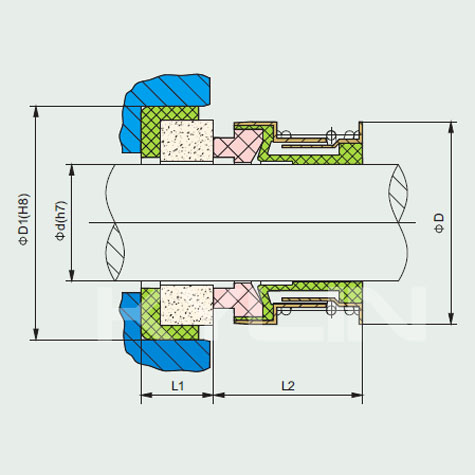

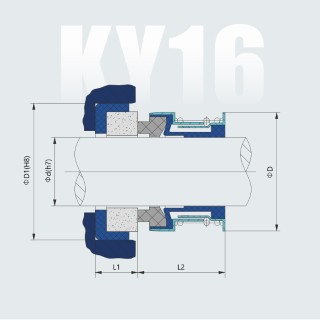

Part Numbers	d	D	D1	L1	L2
KY TYPE 16-3/8"A	9.53	23.29	22.23	6.35	16.08
KY TYPE 16-3/8"	9.53	23.29	22.23	7.14	16.86
KY TYPE 16-1/2"A	12.7	23.29	25.4	6.35	16.86
KY TYPE 16-1/2"	12.7	23.29	25.4	7.93	16.86
KY TYPE 16-5/8"	15.88	30.1	31.75	10.3	18.44
KY TYPE 16-3/4"	19.05	33.07	34.93	10.3	18.44
KY TYPE 16-7/8"	22.23	36.3	38.1	10.3	20.82
KY TYPE 16-1"	25.4	39.42	41.28	11.1	20.82
